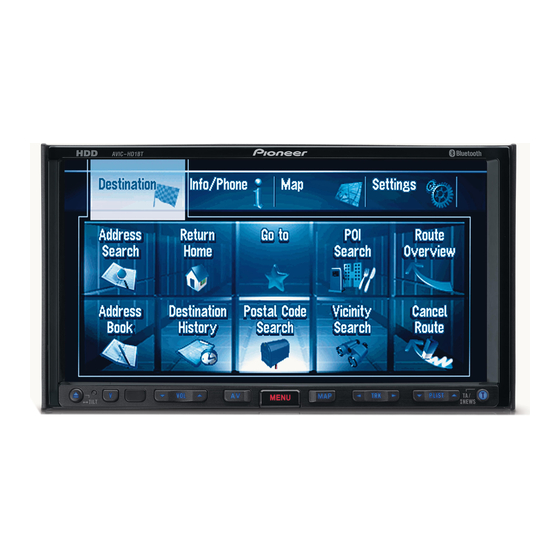

  Hardware Manual HDD AV NAVIGATION HEAD UNIT AVIC-HD1BT Hands-free phoning is made possible by connecting the Bluetooth unit (ND-BT1). Use the navigation system with ND-BT1 connected.

• Page 2: Table Of Contents

  Table of Contents Manual Overview 1 Inserting a disc 12 Ejecting a disc 13 How to use this manual 1 Adjusting the LCD Panel Angle 13 Terminology 1 About the definition of terminology 1 Appendix Precautions Troubleshooting 15 Important Safety Information 2 Handling and Care of the Disc 15 Additional Safety Information 3 Playable Discs 15…

• Page 3: Manual Overview

  Manual Overview Terminology Before moving on, take a few minutes to read the This manual describes information related to the following information about the conventions used hardware, such as the names of parts for the nav- in this manual. Familiarity with these conventions igation system or precautions for use.

• Page 4: Important Safety Information

  Private households in the 25 member states of PIONEER Service Station. Using this navi- the EU, in Switzerland and Norway may return gation system in this condition may result their used electronic products free of charge to in permanent damage to the system.

• Page 5: Additional Safety Information

  ❒ Read the entire manual before operating this ❒ The data encoded in the hard disk drive is the navigation system. intellectual property of the provider, and the provider is responsible for such content. ❒ The navigation features of this navigation sys- tem (and rear view camera option if pur- ❒…

• Page 6
  ➲ Setting the source for rear source ➞ Opera- tion Manual • THE LIGHT GREEN LEAD AT POWER ❒ The map screen navigation images output to CONNECTOR IS DESIGNED TO DETECT the “Rear Display” differ from standard NTSC PARKED STATUS AND MUST BE CON- format images.

• Page 7: Notes Before Using The System

  • Should this product fail to operate properly, listen to the song currently being recorded. contact your dealer or nearest authorised Pio- neer Service Station. Automatic title retrieval function using • The Pioneer CarStereo-Pass is for use only in ® Germany. Gracenote Music Recognition Service…

• Page 8: About Bluetooth

  U.S. and other countries. • The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Pioneer Corporation is under licence. Other trademarks and trade names are those of their respective owners.

• Page 9: About Dolby Digital

  About Dolby Digital When recording, pay attention to the following points: The AVIC-HD1BT will down-mix Dolby Digital sig- • Pioneer does not compensate for contents that nals internally and output the sound through the cannot be recorded or any loss of recorded stereo.

• Page 10: For Comfortable Lcd Viewing

  ➲ For details about handling the LCD panel ➞ • When changing the combination of the equip- ment. Page 19 • When adding/removing additional products that connect to the navigation system. For comfortable LCD viewing Due to its construction, the viewing angle of the Turn the ignition switch OFF.

• Page 11: How To Use The Navigation System

  Chapter 2 How to Use the Navigation System and Names of the Parts Checking Part Names and Functions This section gives information about the names of the parts and the main features using the buttons. ❒ For more details on operations and limitations of functions, please refer to the Operation Manual. 23 4 OPEN CLOSE button RESET button…

• Page 12: About The Power Supply Of The Navigation System

  V button P.LIST (/) button Press to enter the PICTURE ADJUSTMENT Changes the discs in the magazine when using a mode. multi-CD player (sold separately). Switches preset channels when using the radio. ➲ Operating the Picture Adjustment ➞ Opera- tion Manual ❒…

• Page 13: When Using The Navigation System For The First Time

  [Video] (refer to Operation Manual). When the vehicle starts to run, the 3D Hybrid Sensor’s initial learning automatically starts. ❒ “External unit” refers to a Pioneer product Until the 3D Hybrid Sensor’s initial learning is (such as one available in the future) where,…

• Page 14: Inserting/Ejecting A Disc

  Inserting/Ejecting a Disc When a disc is already set • When opening, closing and adjusting the angle of the LCD panel, be careful not to get your finger caught. • Do not use with the LCD panel left open. If LCD panel is left open, it may result in injury in the event of an accident.

• Page 15: Ejecting A Disc

  Ejecting a disc Press the OPEN CLOSE button. The LCD panel opens. Press the EJECT button. The disc is ejected. Press the OPEN CLOSE button. The LCD panel closes. Adjusting the LCD Panel Angle • When opening, closing and adjusting the angle of the LCD panel, be careful not to get your finger caught.

• Page 17: Appendix

  Appendix Troubleshooting DVD-Video disc region numbers DVD-Video discs that have incompatible region ➲ Troubleshooting ➞ Appendix of the Operation numbers cannot be played on this DVD drive. The Manual region number of the player can be found on the bottom of this product. Handling and Care of the Disc The illustration below shows the regions and cor- responding region numbers.

• Page 18: Condition Memory

  ROM discs or DVD-RAM discs. Only DVD-ROM • Check all discs for cracks, scratches or warp- discs authorised by Pioneer can be read. age before playing. Discs that have cracks or • Playback of discs recorded on a personal com-…

• Page 19: Cd-R/Cd-Rw Discs

  • Please refer to the manufacturer for more • The maximum number of characters for the file detailed information about Dual Discs. and folder name is 32 characters, including extension (.mp3). However the navigation sys- CD-R/CD-RW discs tem uses proportional font. Therefore, the number of the characters that you can display •…

• Page 20: Ambient Conditions For Playing A Disc

  Ambient conditions for playing a ❒ The following figure is an example of the tier structure in the CD. The numbers in the figure disc indicate the order in which folder numbers • At extremely high temperatures, a temperature are assigned and the order to be played back. cutoff protects this product by switching it off Indicates the order in which folder numbers automatically.

• Page 21: Other Precautions

  disc identification and obtain music-related infor- USE OF THE GRACENOTE COMPONENT OR ANY mation, including name, artist, track, and title GRACENOTE SERVER. IN NO CASE WILL information (“Gracenote Data”), which is GRACENOTE BE LIABLE FOR ANY CONSEQUEN- included on the Gracenote Database (the TIAL OR INCIDENTAL DAMAGES OR FOR ANY “Gracenote Database”).

• Page 22: About The Liquid Crystal Display (Lcd) Screen

  If About the liquid crystal display this happens, consult your dealer or the nearest authorised PIONEER Service Sta- (LCD) screen tion. • If the LCD panel is near the vent of an air con-…

• Page 23: Glossary

  Glossary Specifications ➲ Glossary ➞ Appendix of the Operation Manual General Rated power source …. 14.4 V DC (10.8 V to 15.1 V allowable) Grounding system ….Negative type Maximum current consumption ……….. 10.0 A Dimensions (W ✕ H ✕ D): Chassis……

• Page 24
  Usable sensitivity….8 dBf (0.7 μV/75 Ω, mono, S/ Equaliser (3-Band Parametric Equaliser): N: 30 dB) Signal-to-noise ratio …. 75 dB (IEC-A network) Frequency ….. 40/80/100/160 Hz Distortion……0.3 % (at 65 dBf, 1 kHz, Q Factor ….0.35/0.59/0.95/1.15 (+6 dB stereo) when boosted) 0.1 % (at 65 dBf, 1 kHz,…
• Page 25
  PIONEER EUROPE NV Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: (0) 3/570.05.11 Published by Pioneer Corporation. Published by Pioneer Corporation. Copyright © 2006 by Pioneer Corporation. Copyright © 2006 by Pioneer Corporation. All rights reserved. All rights reserved. Printed in Belgium <CRB2187-A>…
